BETA-LDG Carbon steel body electromagnetic flow meter

โพสต์เมื่อ : 12 ม.ค 2565 เวลา 5:59 น.

BETA-LDG Carbon Steel Body Electromagnetic Flow Meter

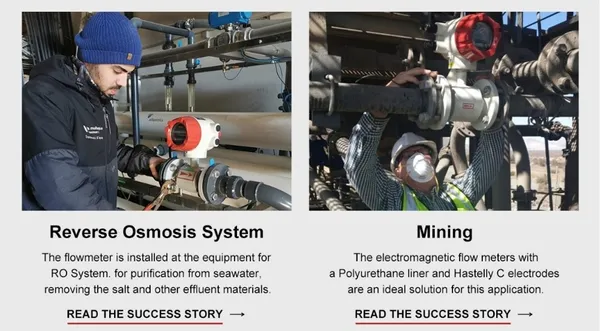

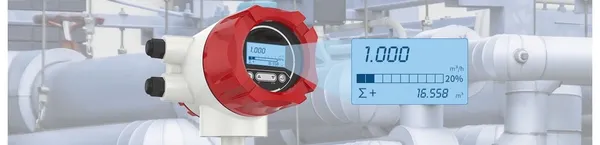

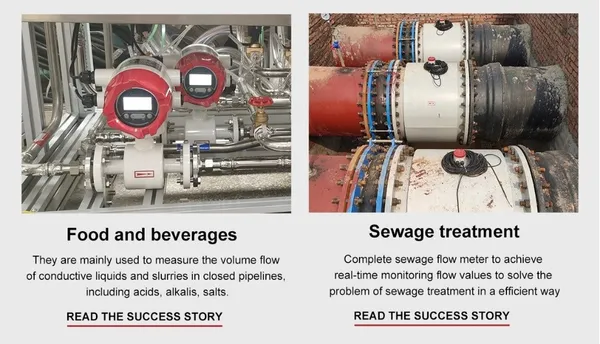

BETA-LDG electromagnetic flow meter is applicable for all conductive liquids. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. Can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.

สอบถามรายละเอียดเพิ่มเติม คลิก

Looking for more information, CLICK

Pipe diameter:	DN15~DN1000
Accuracy	±0.5%(Flow speed > 1m/s)
Reliability	0.15%
Electric conductivity	Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Turndown ratio	1:100
Power supply	100-240VAC，50/60Hz; 22-26VDC

Product	Electromagnetic flowmeter
Model	BETA-LDG
Diameter nominal	DN15~DN1000
Nominal pressure	DN6 - DN80, PN<4.0MPa; DN100 - DN150, PN<1.6MPa; DN200 – DN1000, PN<1.0MPa; DN1200 – DN2000, PN<0.6MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Repetitiveness	0.15%
Liner material	PFA, F46, Neoprene, PTFE, FEP
Electrode material	Stainless steel SUS316, Hastelloy C, Titanium, Tantalum, Platinum-iridium
Medium temperature	Integral type: -10℃~80℃; Split type: -25℃~180℃
Power supply	100-240VAC，50/60Hz / 22-26VDC
Electrical conductivity	IP65, IP68(optional)
Product standard	JB/T 9248-2015

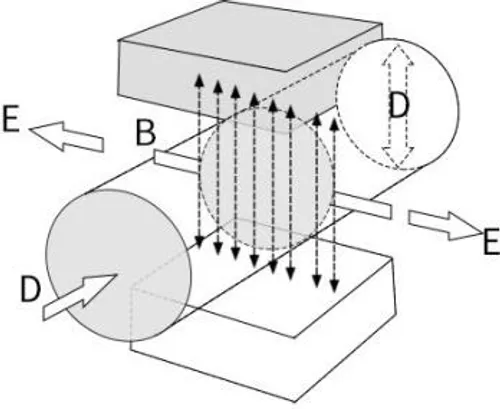

Mag meter works based on Faraday's law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:

E=K×B×V×D

Where:
