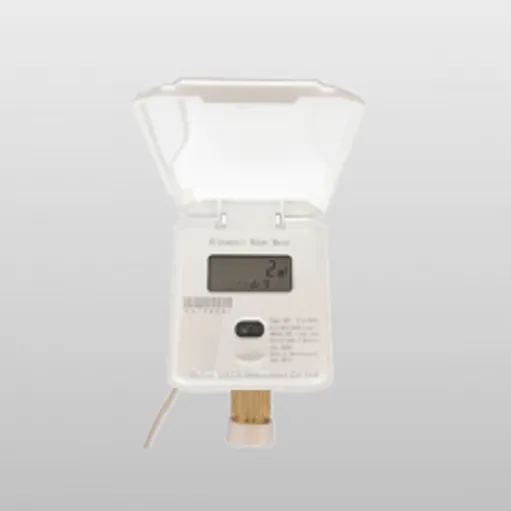

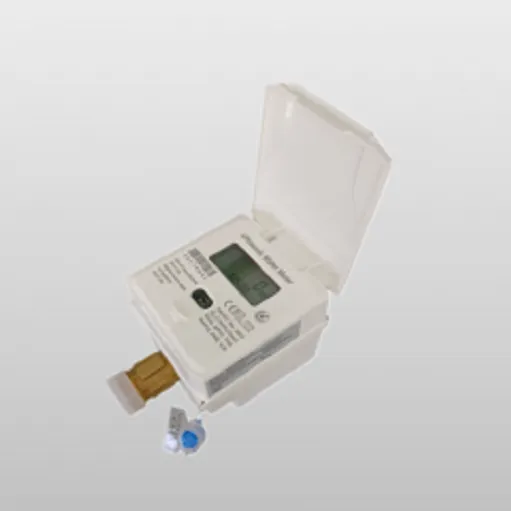

Residential Ultrasonic water meter (BETA-W7)

(BETA-W7)Item No.:26.2

Designed for residential area with household metering and billing system,reached the demand of precise measurement and settlement on End-User for water utilities.

สอบถามรายละเอียดเพิ่มเติม คลิก
Looking for more information, CLICK

BETA-W7 Residential Ultrasonic Water Meter is designed for the residential area with household metering and billing system, reached the demand for precise measurement and settlement on End-User for water utilities.


  • Approved according to GB/T 778-2007 and MID certification;
  • The low starting flow, minimum flow rate is lower than the 1/3 of the traditional water meter;
  • Bi-directional flow measurement;
  • Have water temperature detection and temperature alarm;
  • No moving parts, no wear, can be long-term and stable operation;
  • More than 10 years battery operated life span;
  • Be installed at any angle, the measurement accuracy is not affected;
  • Ultrasonic signal quality detection;
  • Magnetic induction button;
  • The overall IP68 design, long-term immersion in the work;
  • Support optical, wired & wireless M-Bus, RS485, 4-20mA, LoRa, NB-loT and pulse interfaces;
  • Complies to MODBUS RTU and EN 13757 communication protocol;
  • Comply to drinkable water standard requirement;
  • LCD screen can be changed by touching the magnetic switch.
